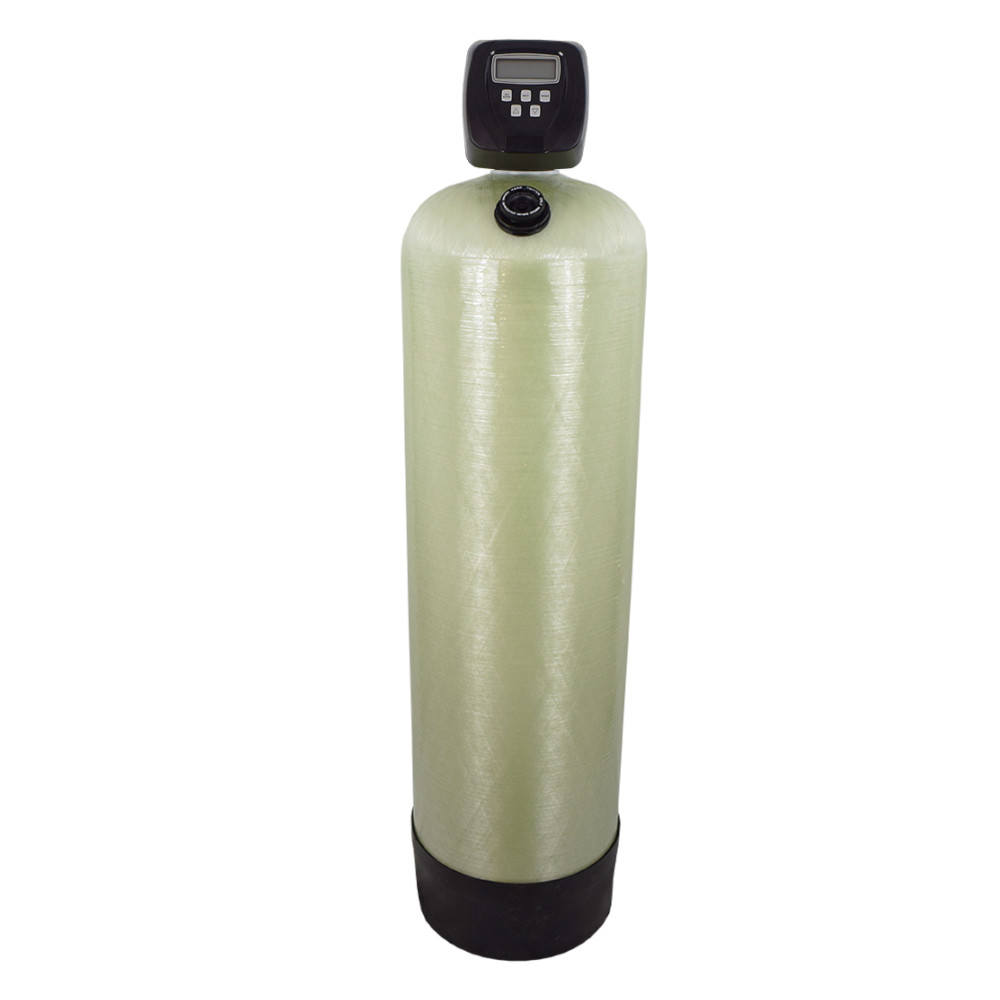

NT 90 Deacidification System
High-capacity pH correction system with calcite media for residential and commercial water treatment.
Rp24050000.00
The NT 90 Deacidification System is designed to neutralize acidic water and help protect pipes, fittings, pumps, heaters and downstream filtration systems from corrosion.

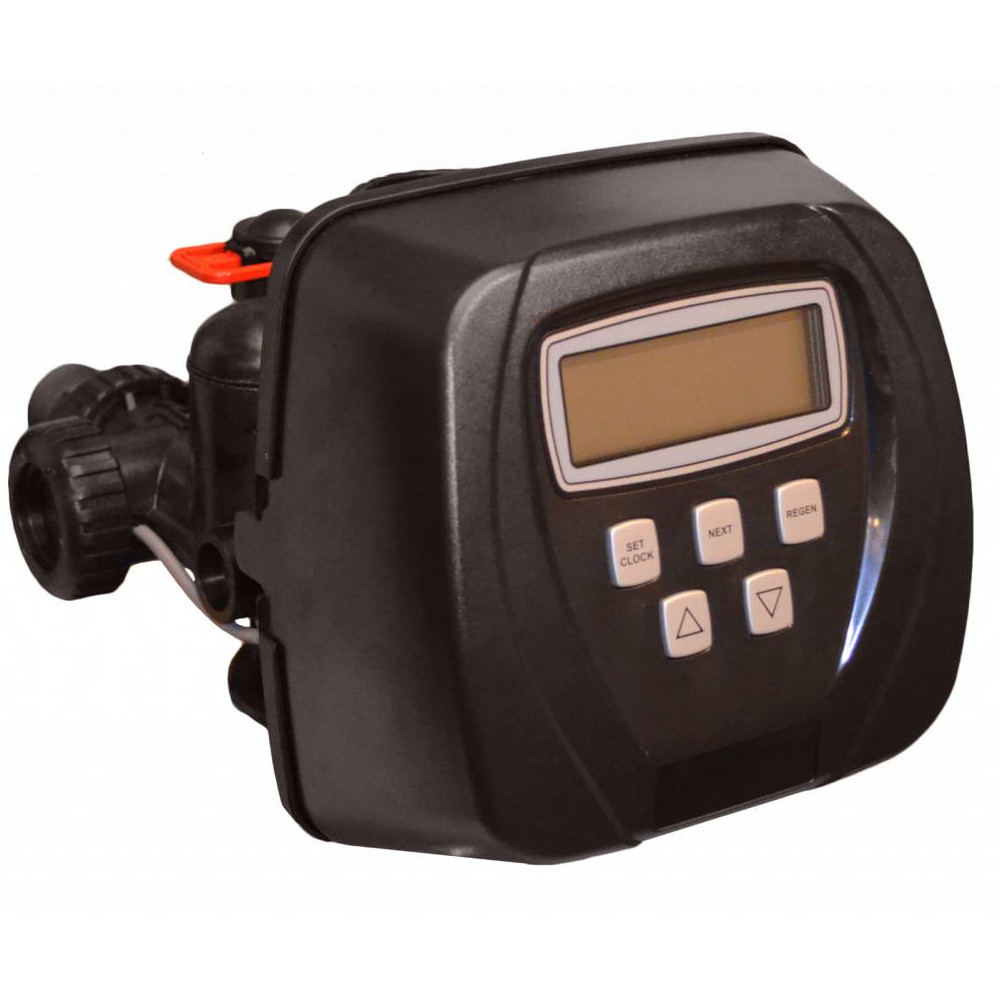

The system uses calcite media to naturally increase the pH level of acidic water as it flows through the pressure tank. Backwashing is controlled automatically by a Clack WS1CI control valve, using both volume-based and time-based settings.
Key Benefits
Helps neutralize acidic water
Supports pH correction through calcite media
Helps reduce corrosion in pipes and appliances
Protects downstream filtration systems
Automatic backwash control
Suitable for higher water demand applications
Delivered filled and ready for installation
Technical Specifications
Specification | NT 90 |
|---|---|
Control valve | Clack WS1CI |
Backwash activation | Volume- and time-controlled |
Recommended max. flow rate | 2.5 m³/h |
Filter media | Calcite |
Media filling weight | 150 kg |
Electrical connection | 230V / 50Hz / 12V |
Water connection | 1″ male thread |
Wastewater connection | 3/4″ hose nozzle |
Operating pressure | 2.0–6.0 bar |
Pressure loss | approx. 0.5 bar |
Tank size | 14 × 65 GFK / FRP pressure tank |
Dimensions H × W × D | 1950 × 360 × 360 mm |
Total weight | approx. 180 kg |
Scope of Delivery
Included:
1 NT 90 deacidification system, filled and ready for operation
1 installation manual
1 programming manual
Optional Connection Set
Includes:
2 braided flexible hoses with elbow, both sides with 1″ union nut, length 1000 mm
1 wastewater hose, 1/2″, length 2000 mm
1 hose clamp for wastewater hose
4 seals for the braided flexible hoses
